HDMI Matrix Switcher
HDMI Matrix Switcher is a device used to switch multiple HDMI input signals to multiple HDMI output devices. It is widely used in home entertainment centers, conference rooms and multimedia classrooms, etc.

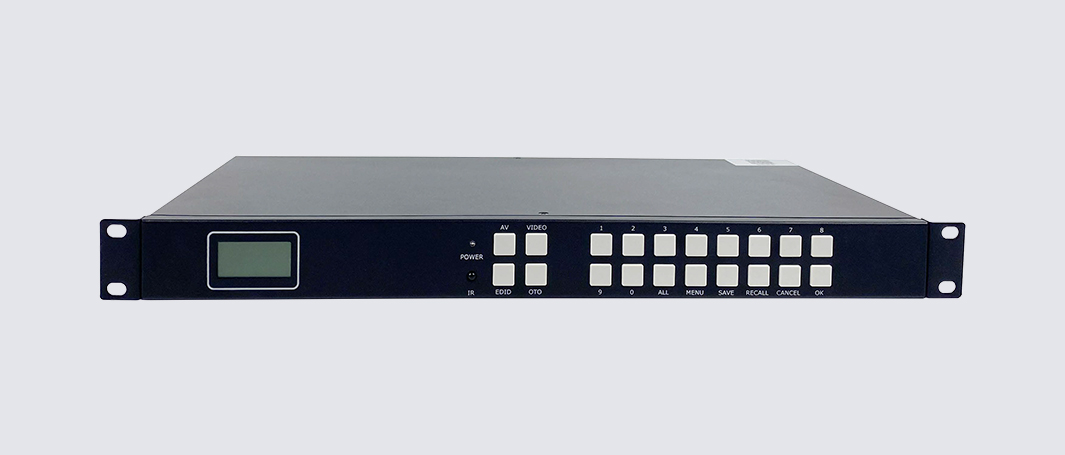

HMF Series 2K@120
- Full hardware architecture without CPU and operating system;
- All boards are modular in design and support hot swapping, making the system stable and reliable;
- Using 6.5GHz high-bandwidth chip;

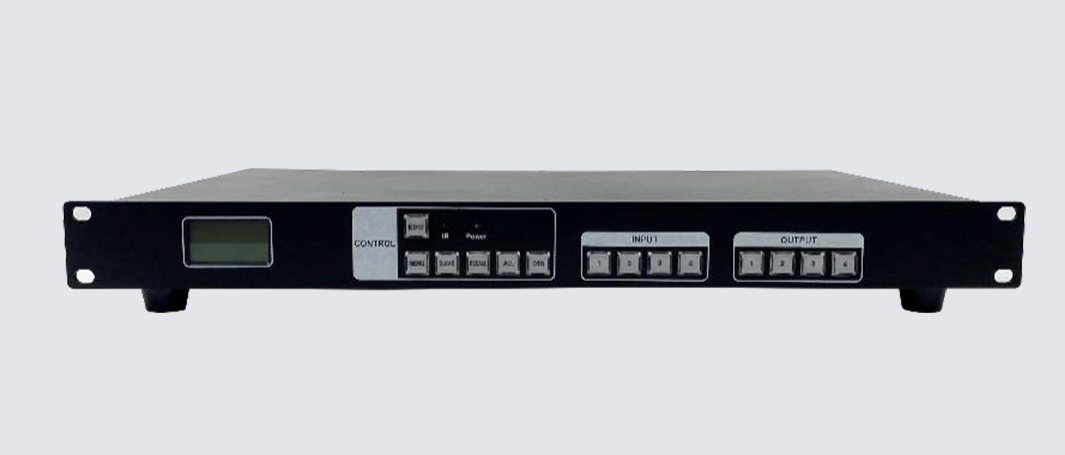

HMF Series 4K@30
- Full hardware architecture without CPU and operating system;
- All boards are modular in design and support hot swapping, making the system stable and reliable;
- Using 17GHz high-bandwidth chip;
This 4K60 HDMI 8x8 matrix supports the transmission of video (up to 4K2K@60Hz YUV 4:4:4) and multi-channel high-resolution digital audio from 8 HDMI sources to 8 HDMI display devices. Supports stripping HDMI source audio to coaxial audio port and analog audio port output. When the ARC function is turned on, the audio from the HDMI display device can be returned to the coaxial audio port output. Each HDMI output port of this matrix independently supports video scaling from 4K2K to 1080P. Supports CEC control display and intelligent EDID management. Can be controlled via panel buttons, infrared remote control, RS-232, LAN and Web GUI.
Each signal of this product is designed in strict accordance with industry standards to prevent crosstalk between signals, reduce signal attenuation, ensure the signal quality of each high-definition signal after being exchanged by this device, and achieve perfect output of high-definition signals.

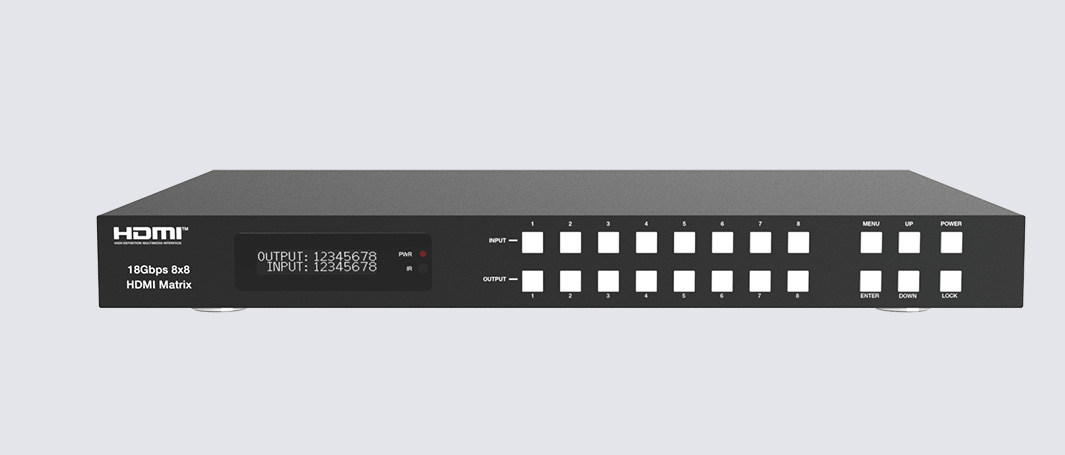

HM8x8S 4K@60 Seamless Series
- Comply with HDMI2.0b and HDCP 2.2/1.4 specifications
- Video resolution supports up to 4K2K@60Hz (YUV 4:4:4)
- Support 18Gbps video bandwidth
HMS 4x4 4K@30 Seamless
Support input and output support HDMI1.4, the highest resolution is 3840x2160@30Hz;
The input and output color spaces support RGB, YCbCr4:4:4, YCbCr4:2:2, etc.;
Input built-in 7 kinds of EDID, 1920x1080@60Hz two-channel (default)

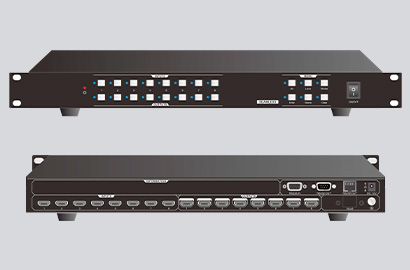

HMS 8x8 4K@30 Seamless
Input compatible with DVI/HDMI signals;
The output supports combination port, with 9 default output resolutions available;
The output signal combination port format supports HDMI and DVI;
Support power-off memory function;

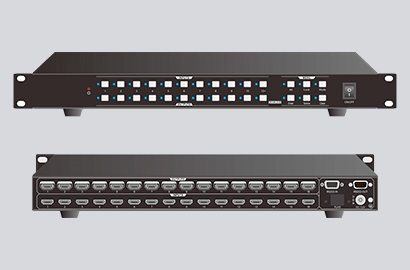

HMS 16x16 4K@30 Seamless
Supports continuous hot plugging of HDMI interface; Support standby and low power consumption; Supports two-way serial port control, panel button control, and optional network port control;

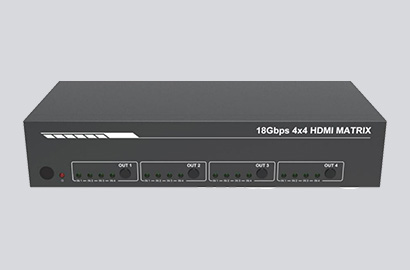

HM4x4S 4K@60 Seamless
High-performance 4K60 4x4 HDMI matrix can simultaneously switch 4 HDMI signal sources to 4 HDMI displays
The video resolution supports up to 4K2K@60Hz 4:4:4. All output ports support independent video scaling (4K → 1080p), as well as analog L/R and coaxial audio stripping. The ARC function can only return the audio from the display device to the coaxial port output. Support EDID management. Can be controlled via front panel buttons, IR backlight, RS-232 or TCP/IP.

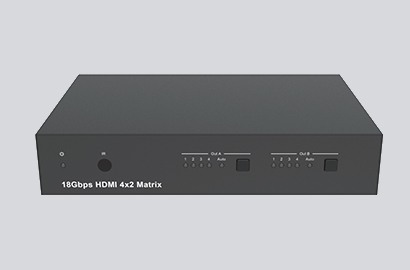

HM0402
This high-performance 4K60 HDMI 4x2 matrix can switch any 4 HDMI sources to 2 HDMI display device outputs. Supported resolutions up to 4K2K@60Hz YCbCr 4:4:4 and HDCP 2.2. This matrix switcher strips audio from HDMI source devices to optical and analog L/R outputs. Supports 4K→1080P Downscale function, that is, if the source device is 4K, but the TV only supports 1080P, the 4K resolution will be reduced to 1080P for TV output through this device. This product also supports the ARC (Audio Return Channel) function.

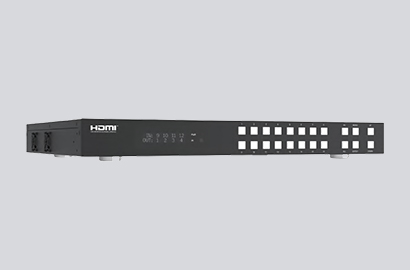

HM1616
The 18Gbps 16x16 HDMI Matrix supports the transmission of video (resolution up to 4K2K@60Hz YUV 4:4:4) and multi-channel high resolution digital audio from 16 HDMI sources to 16 HDMI displays. Audio de-embedded to coaxial audio is supported from 16 HDMI output ports. While HDMI output ARC function is enabled, the ARC audio from HDMI display devices will be extracted to coaxial audio output. Each HDMI output of this 16x16 HDMI Matrix supports 4K2K to 1080P downscaler independently. Control via front panel buttons
