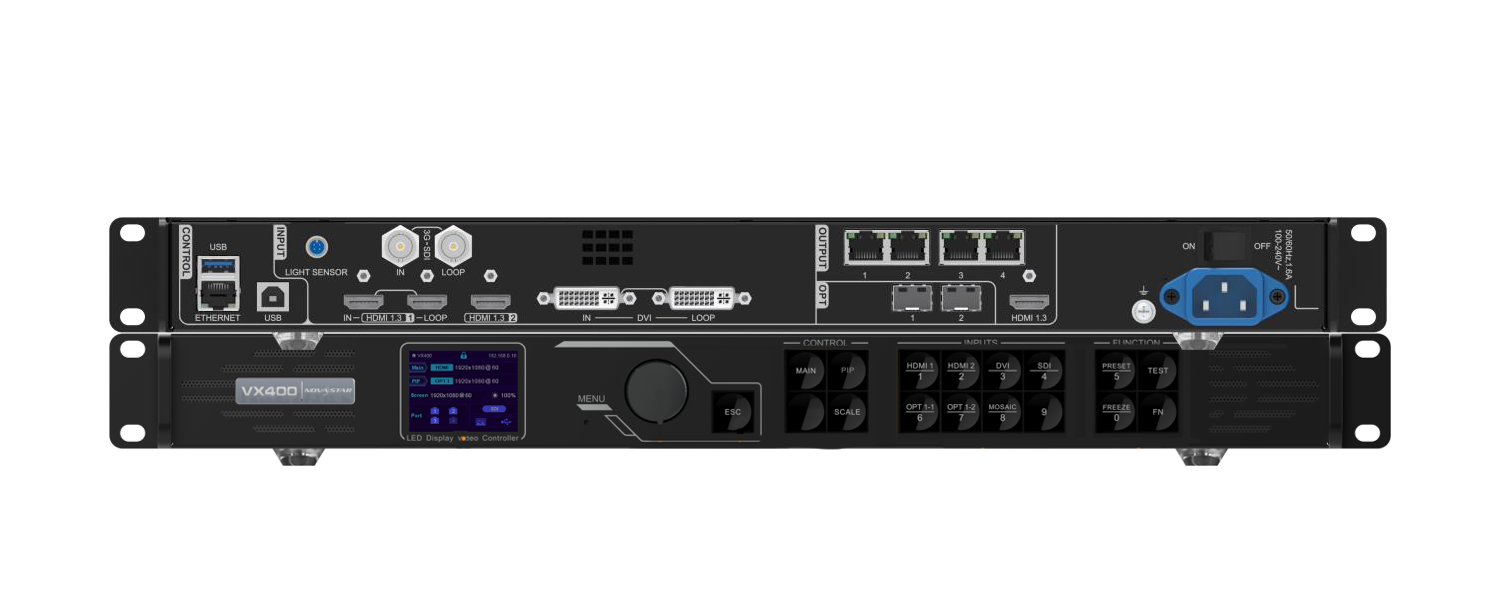

All-in-One Controller
（VX400&600&1000）
The VX400 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 4 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX400 unit can drive up to 2.6 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens. The VX400 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.
Features
- Easy preset saving and loading Up to 10 user-defined presets supported
- Multiple kinds of hot backup
- Mosaic input source supported The mosaic source is composed of two sources (2K×1K@60Hz) accessed to the OPT 1.
- Three working modes
- Up to 4 units cascaded for image mosaic
- Multiple operation modes

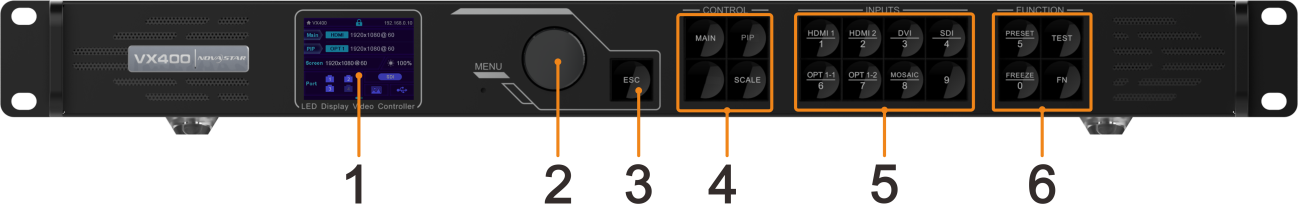

Front Panel
① LCD screen
② Knob
③ ESC button
④ Control area
⑤ Input source buttons
⑥ Shortcut function buttons

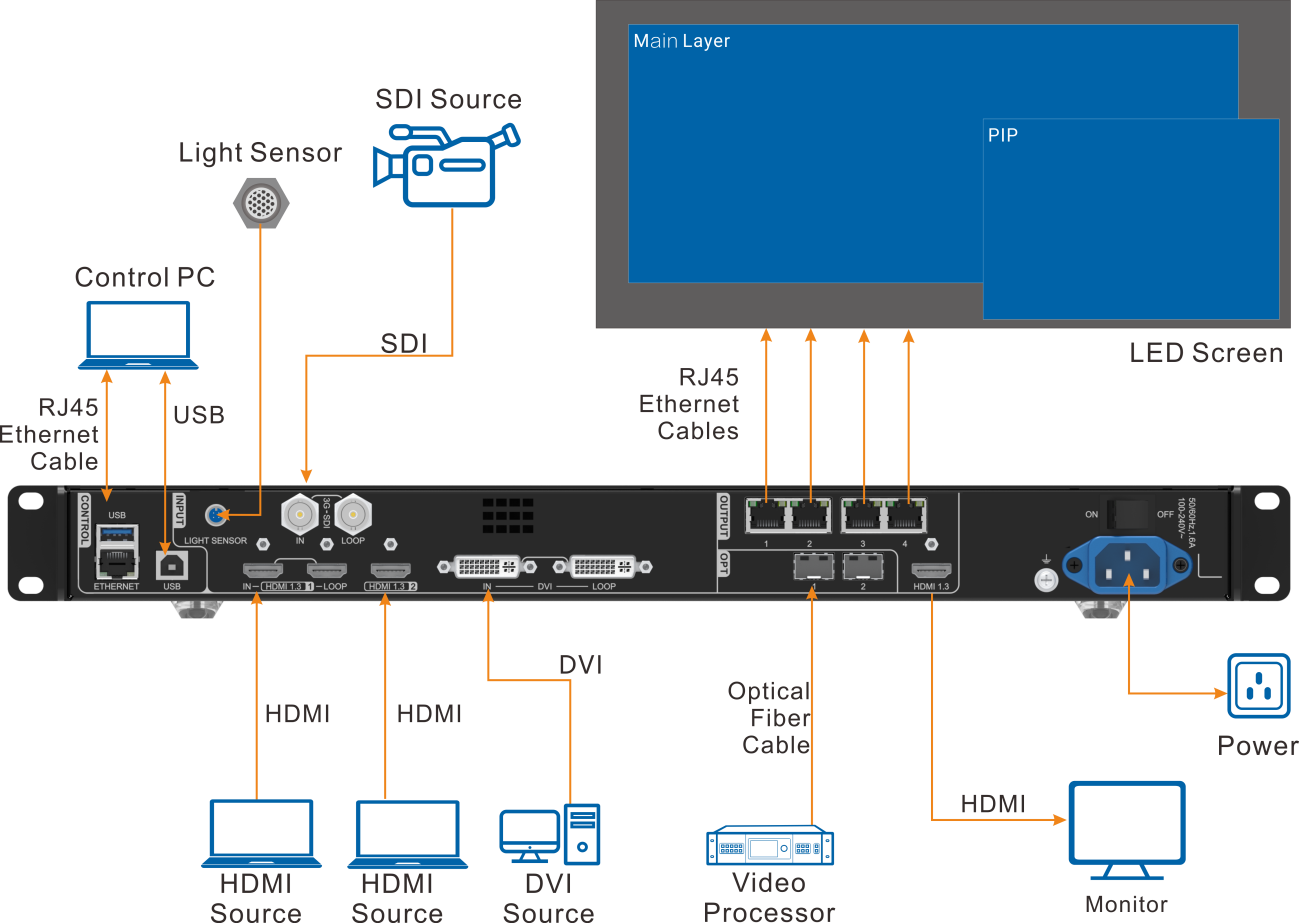

Applications
