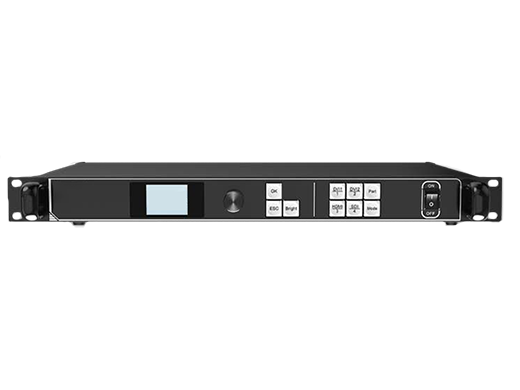

LED All-in-One Processor
VPC7
VPC7 is a professional control system and video processing equipment specially designed for LED engineering applications. It comes with a variety of video signal interfaces, supports high-definition digital interfaces (DVl, HDMl, SDl) and seamless switching, and can achieve broadcast-level quality scaling and multi-screen display. The VPC7 has 8 Gigabit Ethernet outputs and supports an LED display of up to 8192 pixels with a width or height of 4096 pixels. In addition, VPC7 is also equipped with a series of flexible screen controls and multi-functional functions of high-quality image display, which has strong advantages in LED engineering applications.
LED All-in-One Processor Features
• Independent audio input and HDMI audio decoding.
• 8 Gigabit Ethernet output ports, supporting network port redundancy or controller redundancy.
• Brightness and color temperature adjustment
• The carrying capacity is up to 5.2 million pixels, the maximum width is 8192 pixels, and the maximum height is 4096 pixels.
• User-definable video source switching and scaling
• Multiple digital signal ports, including 2x DVl, 1x HDMI, 1x SD1.
• RS232 protocol.
Supports better grayscale under low brightness, which can effectively maintain the complete display of grayscale under low brightness.
• Input resolution up to 1920x1200@60HZ
• Up to 3 layers, easily customize position and size.
·Control system and video processing two in one
• HDCP

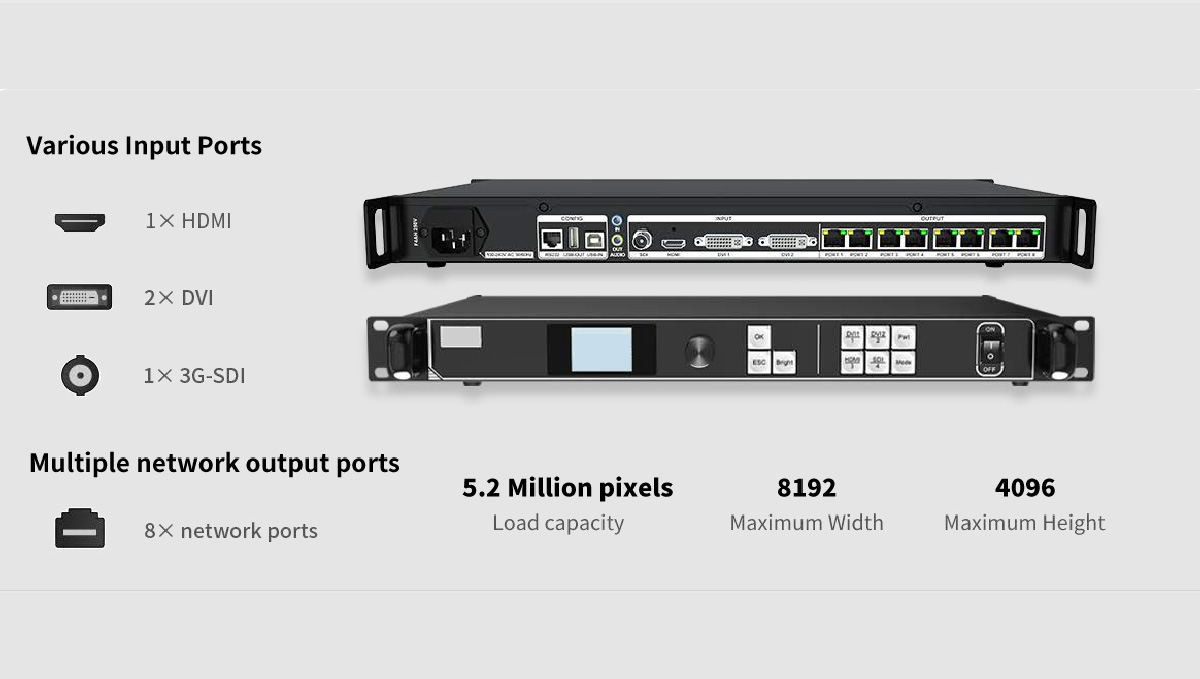

Full Compatibility of Different Input Signals
![VP Series Controller](/media/plg_jspeed/cache/images/vpc_02_e163ce568611da81a71cfda6d34fb9ebf045e671.webp)
Support HD video input signal
Suitable for different scenarios
Support large load capacity
 8 Network Output Ports
Three-Layer Display
Free display layout for 3-layer of HD inputs, enabling smooth scaling effect
![VP Series Controller](/media/plg_jspeed/cache/images/a91maxyw2_jh1rlr_qo_3a6ba51b04dcf8c8b5e185a1b7eb032f7634fff4.webp)
![VP Series Controller](/media/plg_jspeed/cache/images/vpc_44_9c25bbe00da673d35810aa4ac9121b732310004f.webp)
Three-Layer Display
3G-SDI input port supports video deinterlacing. Refined algorithm makes image display clearer

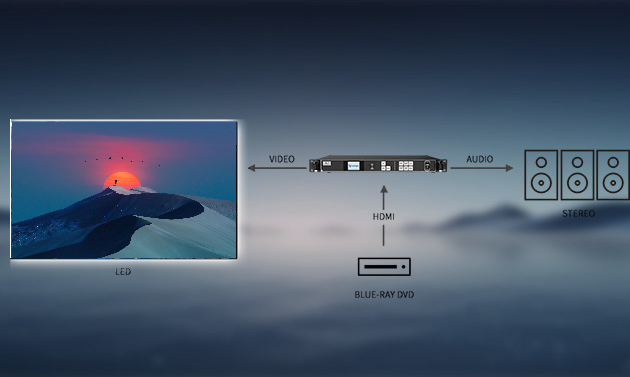

Diagram
![VP Series Video Wall Controller Diagram](/media/plg_jspeed/cache/images/vpc_466_108ef61dc073871bdf7db5a55e4b514e4dd49612.webp)
![VP Series Video Wall Controller Diagram](/media/plg_jspeed/cache/images/vpc_401_1c2e6501e9de7b9cdf896fb7edbea9ac5e1ea376.webp)
