MP300 - Video Wall Controller

MP300 LED display processor is an independent main control card supporting video and audio input, after decoding and data processing Send video and audio from the network port to the display screen, and a single card supports a resolution up to 2048×668@60Hz.

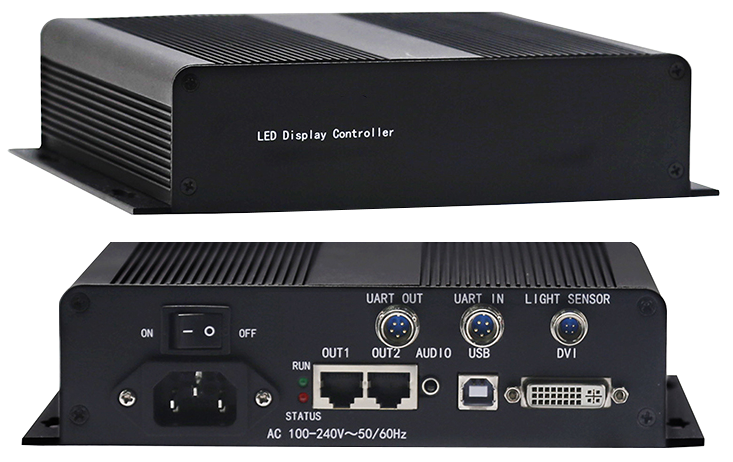

MP300 Processor

Video Wall Controller Features

·2 Input connectors
·1×Type-B USB control port
·Pixel level brightness and chroma calibration.
·2×Gigabit Ethernet outputs
·2×UART control ports
·1×light sensor interface
·Used for device cascading

Diagram

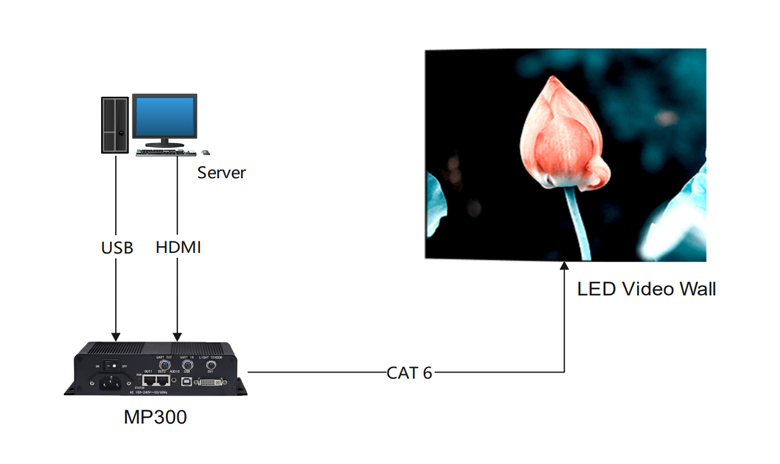

MP300 LED Display Processor Solution Topology

MP300 serves as the interface between the user and the LED display, allowing for the display of various types of content such as text, images, and videos.
MP300 Processor
MP300 Processor Video Wall  Diagram
