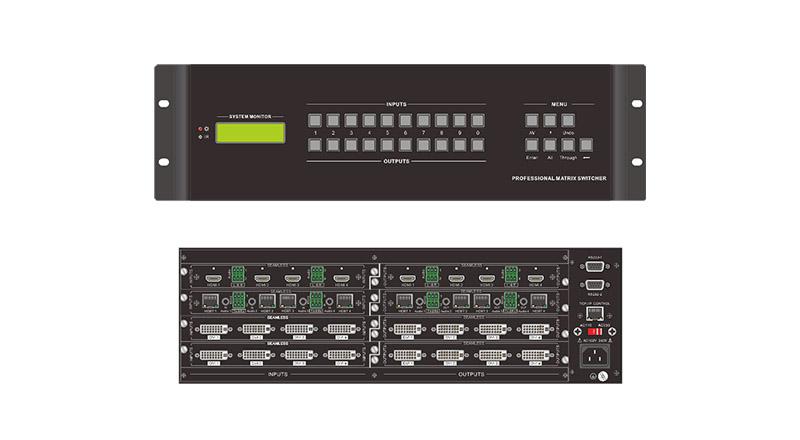

MT Series
MT Series is a high-performance professional audio and video signal switching equipment, compatible with different signal types input/output signal cards, used for cross-switching of multiple signal input and output, and provides independent audio and video signal input and output terminals. This series of products are mainly used in radio and television projects, multimedia conference halls, large-screen display projects, television teaching, command and control centers and other occasions.
Features
  • Support multiple input and output types to meet the needs of various scenarios
  • Support seamless board card combination, can realize seamless splicing display
  • Multiple chassis configurations, maximum support 160 channels input and output
  • Support EDID learning and 10 scene saving and recall
  • Ultra HD resolution input and output, maximum support 3840x2160@60Hz input and output

  • The control method is flexible, with button operation, RS232 control and infrared control
Inputs Card Type
4K HDMI IN
4K HDMI IN
CVBS IN
CVBS IN

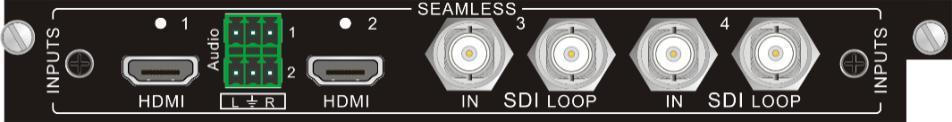

HDMI & SDI IN
HDMI & SDI IN

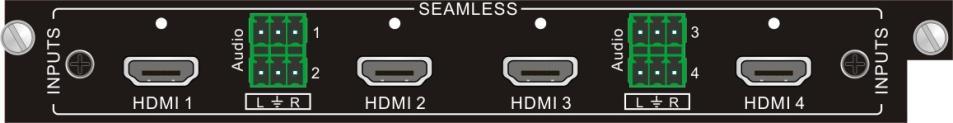

HDMI IN
HDMI IN

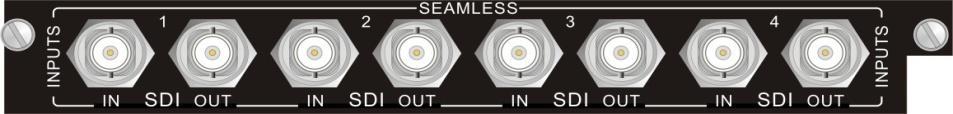

SDI IN
SDI IN

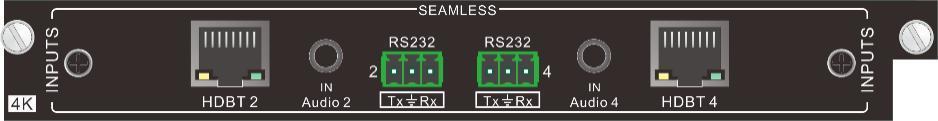

4K HDBT IN
4K HDBT IN
DVI IN
DVI IN
HDMI & SDI IN
HDMI & VGA IN

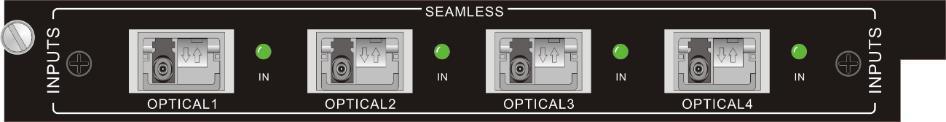

OPTICAL IN
OPTICAL IN
VGA IN
VGA IN
Outputs Card Type
4K HDMI OUT
4K HDMI OUT
CVBS OUT
CVBS OUT

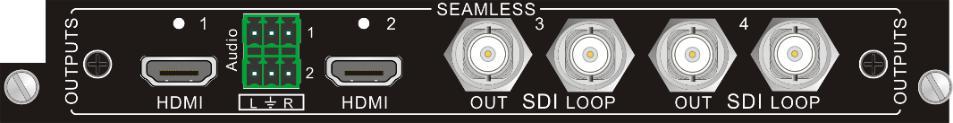

HDMI & SDI OUT
HDMI & SDI OUT

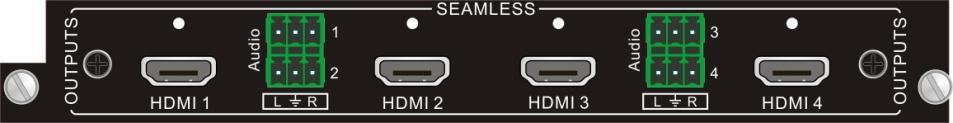

HDMI OUT
HDMI OUT

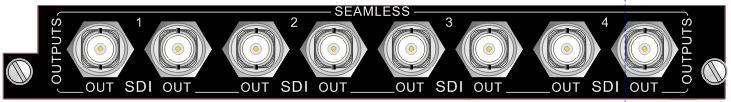

SDI OUT
SDI OUT

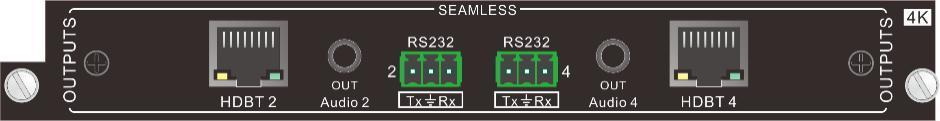

4k-hdbt-out
4K HDBT OUT
DVI OUT
DVI OUT
HDMI & VGA OUT
HDMI & VGA OUT

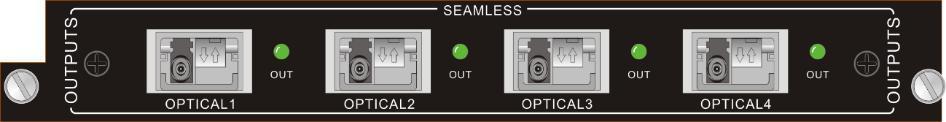

OPTICAL OUT
OPTICAL OUT

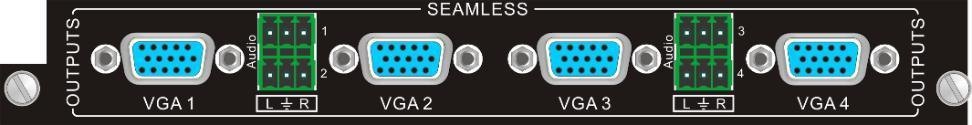

VGA OUT
VGA OUT
Inputs Card Type
Outputs Card Type
4K HDMI IN
4K HDMI OUT
CVBS IN
CVBS OUT
DVI IN
DVI OUT
HDMI & SDI IN
HDMI & SDI OUT
HDMI  IN
HDMI  OUT
OPTICAL IN
OPTICAL OUT
SDI IN
SDI OUT
VGA IN
VGA OUT
Preview
Video Matrix Switchers Diagram
Video Matrix Switchers Diagram
VK Lite-S Series
MXS Series
This high-definition seamless hybrid card matrix is a professional matrix all-in-one machine that supports various audio and video signal switching and distribution, integrated network central control, and video wall functions. It supports up to 8~36 signal inputs and 8~36 signal outputs. The audio and video matrix uses a pure hardware high-speed matrix switching chip with high integration, stable system, no signal compression, no loss, and no delay.

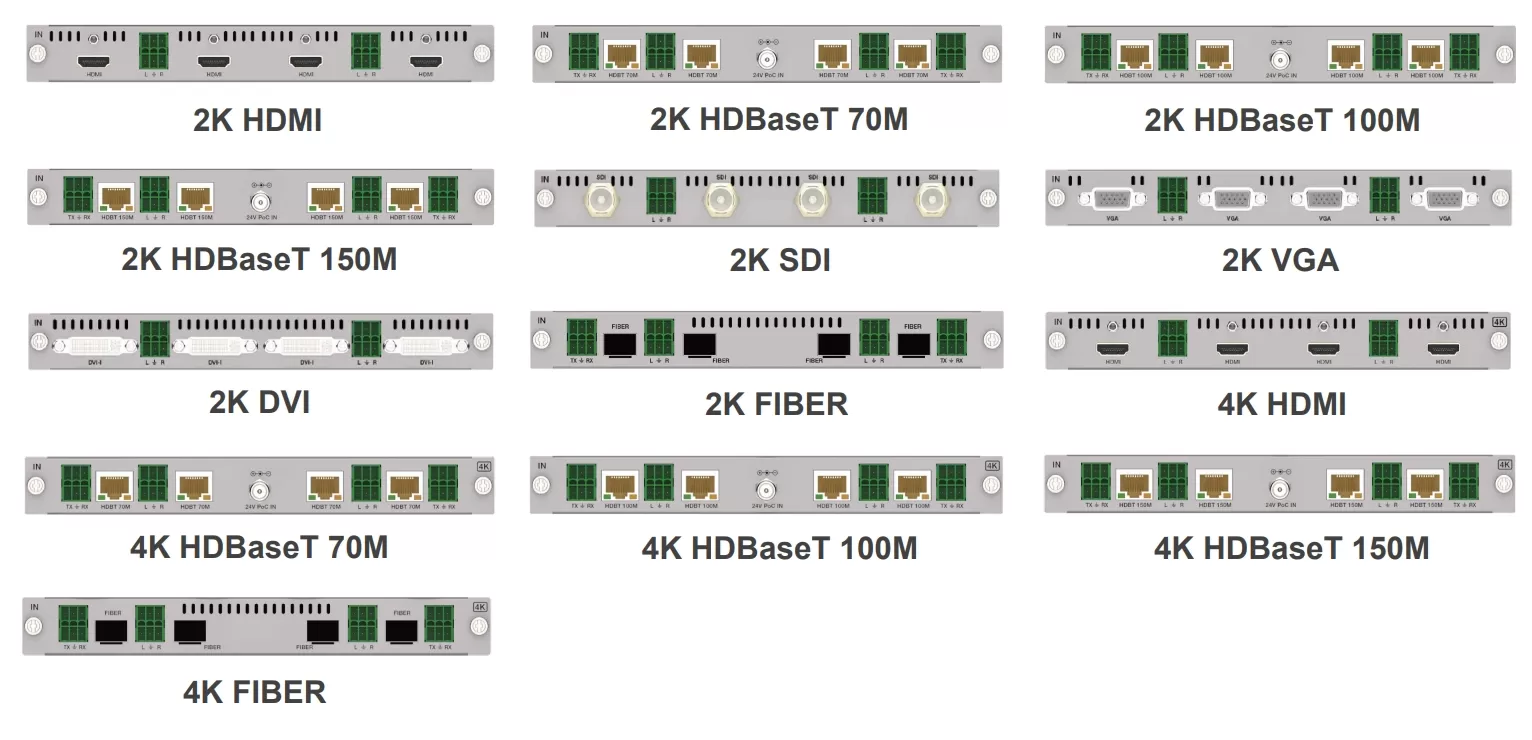

Inputs Card Type
