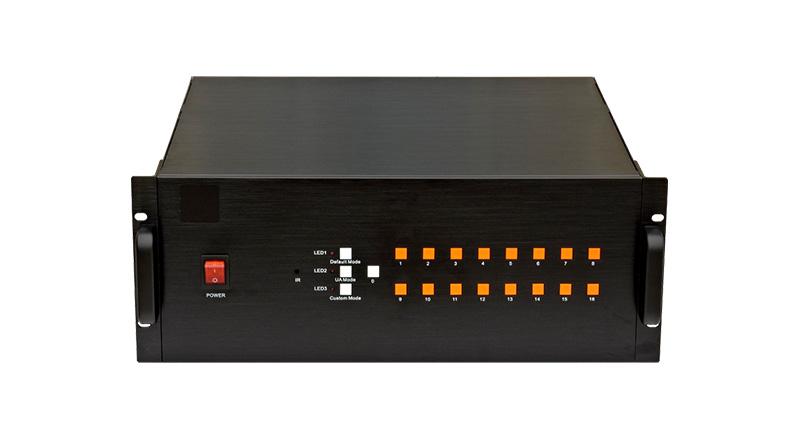

TS Series

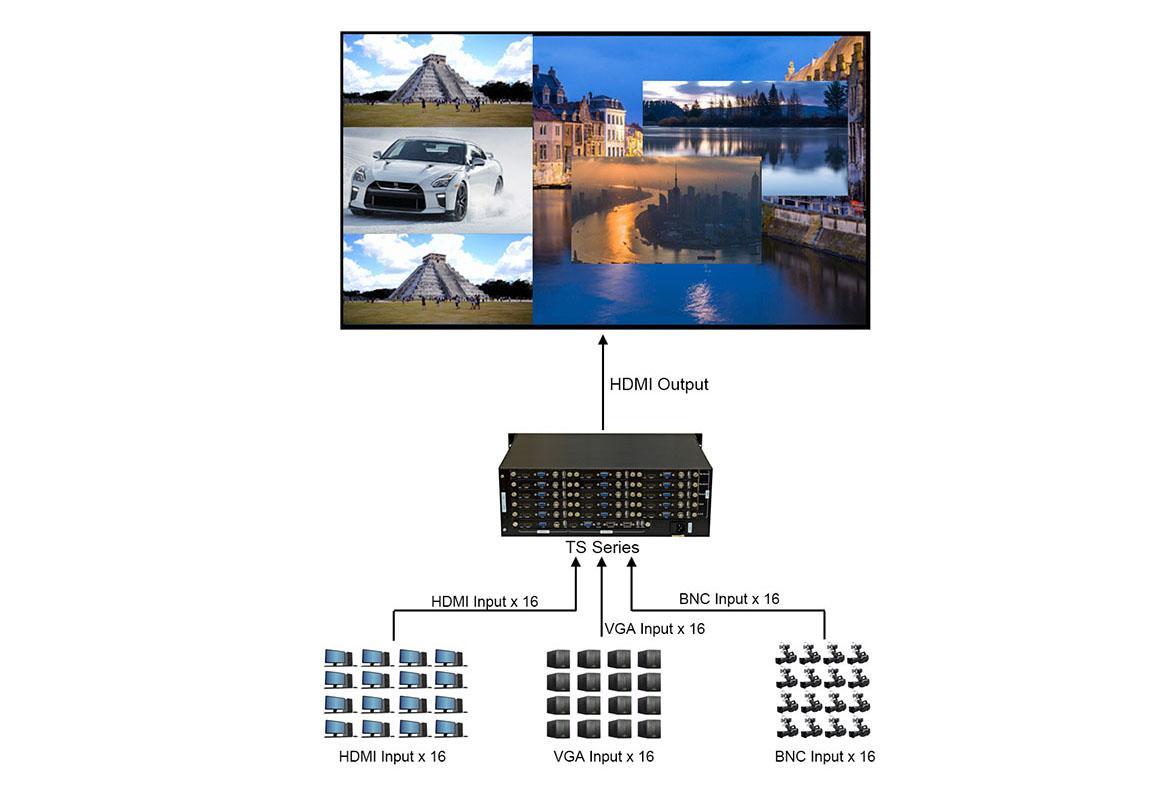

TS is a multiviewer 2~16 channels input and 1 channel output. The main function is to convert multiple HDMI signals input to the multiviewer into single HDMI signal output so that multiple digital signals can be simultaneously displayed on the HD display unit.
Features
- Modular design, free to add or reduce input modules, can be customized 1 to 16 input cards
- Each input board support 1 x BNC,1 x VGA,1 x HDMI altogether 3 channels signal input
- Supports PIP, POP, roaming, arbitrary size and position function
- Supports image transparency adjustment, which allows to see the multi-layer signal
- Supports image transparency adjustment, which allows you to see the image below
- 1 x HDMI and 1 x VGA sync output while connecting two display units
Title | Specification |
|---|---|
Input Interface | 1~16 channels BNC / 1~16 channels VGA / 1~16 channels HDMI |
Input Resolution | 1920 x 1080@60Hz and backward compatible |
Output Interface | 1 x HDMI, 1 x VGA sync output |
Output Resolution | 1920 x 1080@60Hz and backward compatible |
Color | 24bit, 16.77 million colors |
Control Method | Chassis button / remote control / software |
Voltage | 100~240V |
Power | <25W |
Size | 442mm(L) x 405mm(W) x 176mm(H) |
Weight | 8.6KG |
