Video Wall Controller Cost-effective Video And Image Processing Device

VK-THC Series Video Wall Controller

VK-THC series multi-screen splicing processor is a newly launched ultra-high-definition video signal acquisition and transmission using an integrated design, a new architecture, and UI design. The video image resolution can reach the full 4:4:4 chromaticism in the RGB color gamut. Sampling multi functional splicing processor. It uses pure hardware FPGA + embedded architecture to provide customers with rich personalized function customization. THC1U series of scalable video wall processing systems is used for small and medium-sized video wall processing systems with up to 12 displays. Supports multiple signal sources on the wall, splicing, roaming, cross-screen, zoom in and out, picture-in-picture, picture-out-of-picture, picture overlay and other display functions.

Download

VK-THC Features

Supports online upgrade of the device through the upgrade tool.

Support end-to-end low latency: input to output delay <40ms.

Supports single-port acquisition of 1920x1080@60HZ ultra-high-definition signals; supports single-port output of 1920x1080@60HZ ultra-high-definition signals.

Support HDMI high-definition signal input; support HDMI high-definition digital signal output.

Supports the saving of more than 1,000 planned scenarios.

Supports WEB control, which can be used on computers/mobile phones/tablets to switch plan scenes through the WEB browser.

subtitles can be flexibly selected, and the scrolling speed can be adjusted.

Supports Android tablet/mobile phone APP control.

The power consumption of the whole machine is as low as 30W, achieving green energy saving and environmental protection. The noise of the whole machine is <40dB; the noise of the 2U whole machine is <60dB.

Signal Source

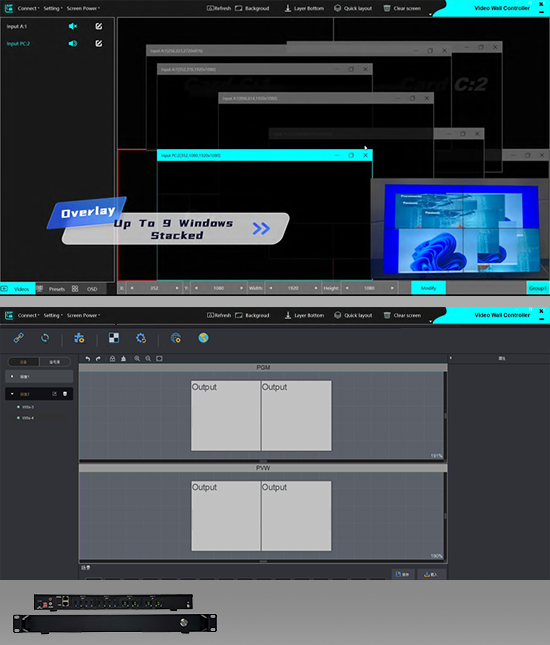

The signal source is windowed and supports any video signal on the wall for splicing, roaming, cross-screen, zoom in and out, picture-in-picture, picture-outside picture, and picture overlay. The maximum number of windows on a single screen is 9, and the entire screen layer is supported and 9*N layer overlay is supported (N is the number of spliced screens)

Video signal processing

Built-in FPGA audio de-embedding and switching functions

Custom Selection Display

Support custom installation of Android software for control. iPAD WEB terminal switching planning scenario

Synchronous input and output

Support custom installation of Android software for control. iPAD WEB terminal switching planning scenario

Ultra HD subtitle function

You can flexibly choose the font, color, size, background color, background transparency of the subtitles, and adjust the scrolling speed.

Custom Selection Display

Support LED

Resolution can be customized

Support tool upgrade

Control system for LED

Android / iPAD Control

Support custom installation of Android software for control. iPAD WEB terminal switching planning scenario

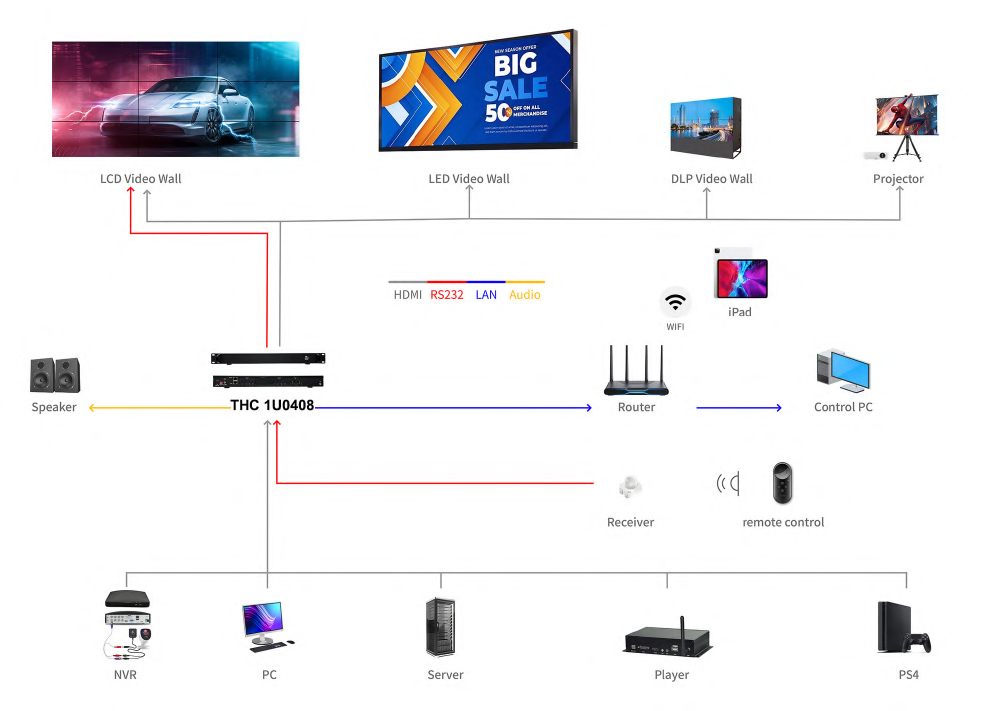

Diagram

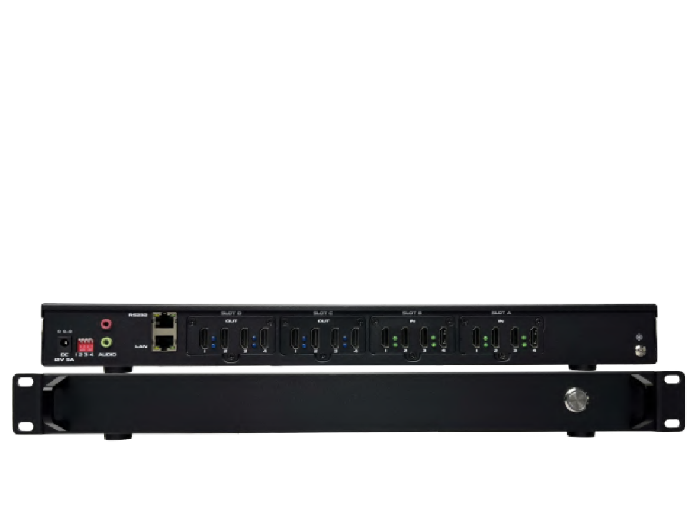

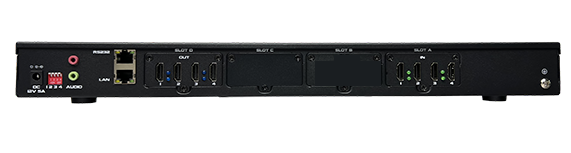

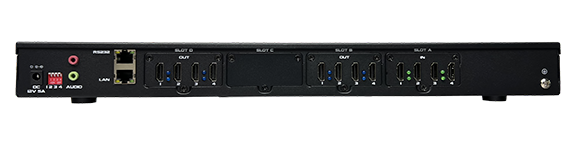

THC1U Series Video Wall Controller

Our latest processor supports a wide range of HDMI input devices including NVRs, PCs, servers, media players, and gaming consoles. It enables audio output to sound systems and visual output to HDMI-equipped devices like LCD, LED, DLP, and projectors. Additionally, it offers flexible control options: you can convert infrared commands to RS232 for controlling other devices, or manage settings directly from a computer or tablet. This versatility makes it an ideal solution for integrating and enhancing your multimedia setup.
