CE-UHD

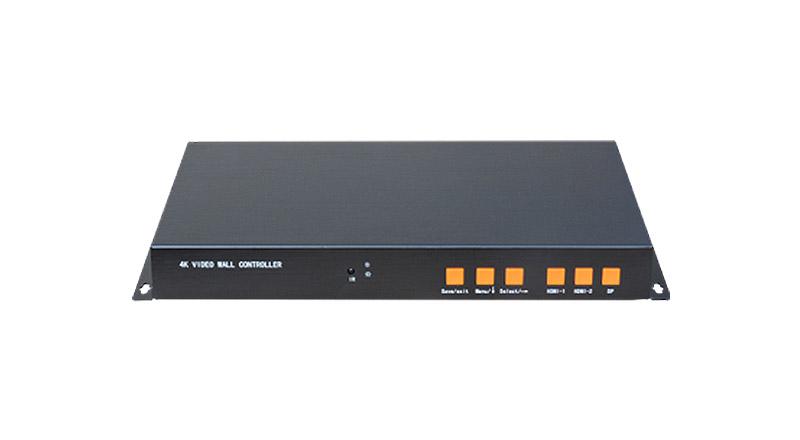

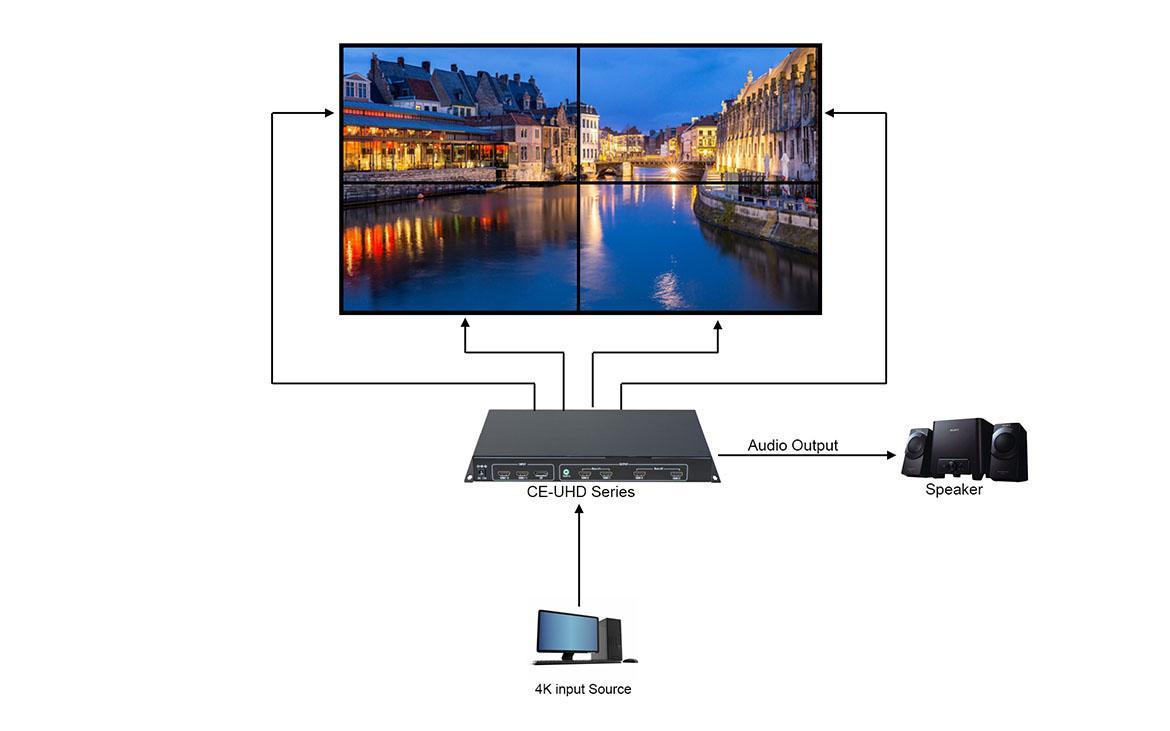

CE-UHD Series is a 4K four-screen video wall processor. Its main function is to display a 3840 x 2160@60Hz ultra-high-definition image on a 2 x 2 splicing display unit. The product adopts advanced image processing technology, and the input signal can support HDMI2.0 at most, that is, 3840 x 2160@60Hz. Even when playing fast animation, there will be no delay or frame loss.
Features
- Support 1 x HDMI2.0, 1 x HDMI1.4, 1 x DP1.2 signal input, Maximum resolution support 3840x2160@60Hz
Realize all 2 x 2 four-picture splicing functions, such as 1 x 2, 1 x 3, 1 x 4 display mode,and support image 180° rotation
- Output HDMI built-in audio, which can achieve video + audio synchronization, and supports 3.5mm audio interface
Item | Specification |
|---|---|
Input Interface | 1 x HDMI 2.0, 1 x DP, 1 x HDMI1.4 |
Input Resolution | 3840 x 2160@60Hz and backward compatible |
Output Interface | 4 x HDMI1.3 / 1 x 3.5mm audio interface |
Output Resolution | 1920x1080 @ 60Hz and backward compatible |
Voltage | DC12V |
Power | 12W |
Size | 299mm(L) x 175mm(W) x 35mm(H) |
Weight | 0.75KG |
