XR Virtual Action Shooting

What is VP?

VP (Virtual Production) technology, also known as virtual production,It is a digital workflow and method assisted by computer technologyProduction and content visualization production.

What is XR?

XR (Extended Reality) technology is a technology that interacts with the real world Characters, props and virtual scenes. This is a virtual scene Technology for camera tracking and real-time image rendering.
Approximate

Approximate

Approximate reflective reflections in the formal world

Cut Costs

Cut Costs

The production cost is greatly reduced

Real-Time

Real-Time

Real-time nature of content rendering

Wireless Extension

Wireless Extension

Wireless expansion of time and space

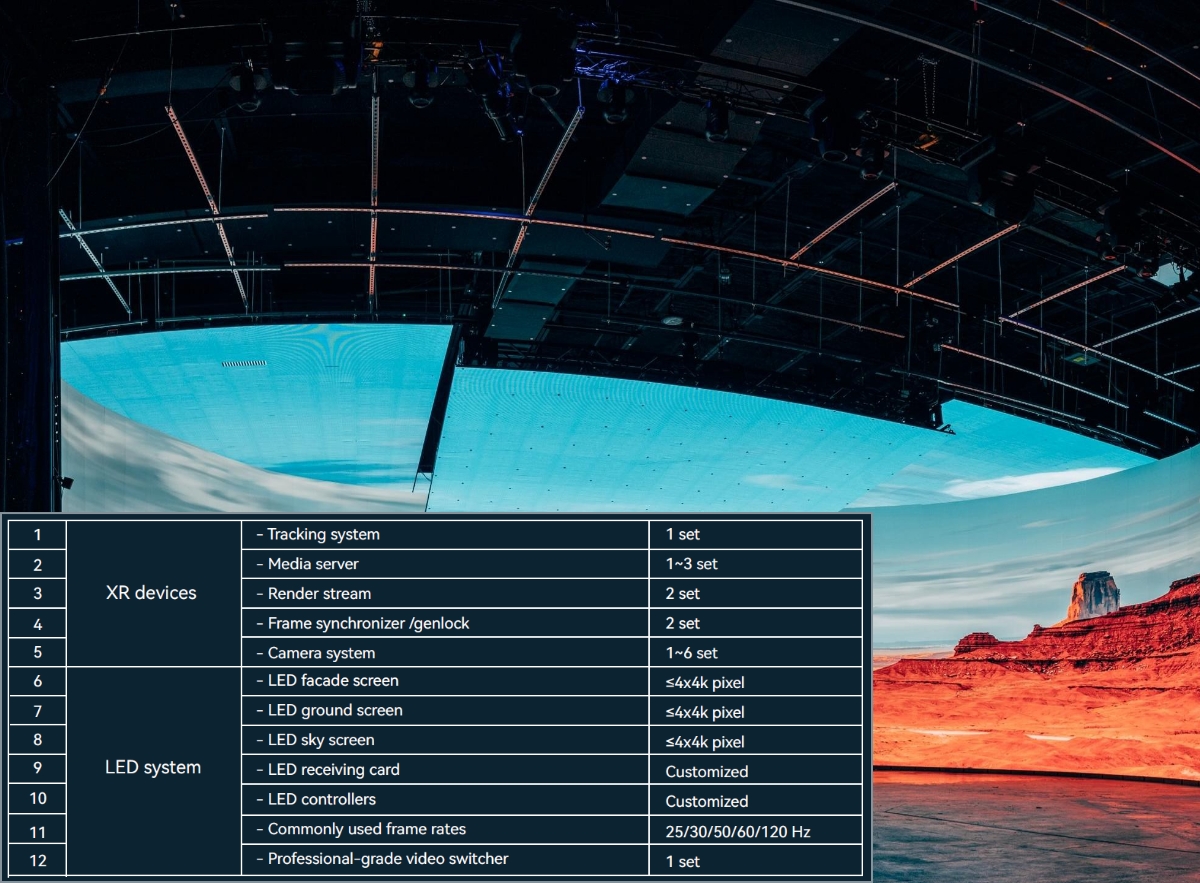

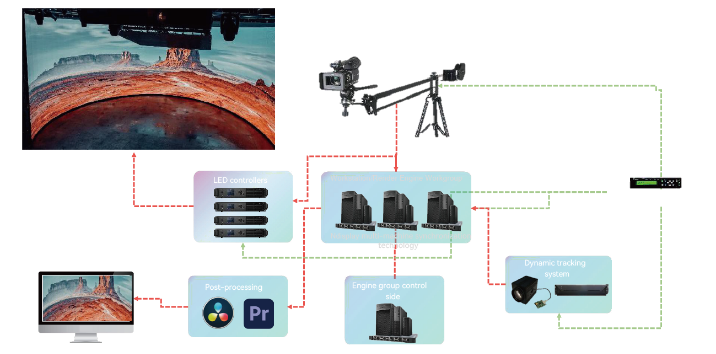

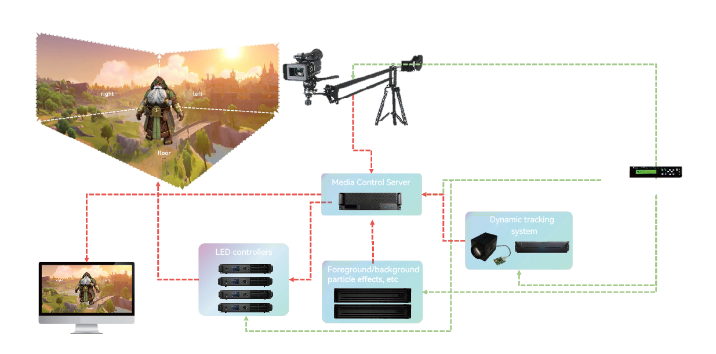

Introduction To The Composition Of The Virtual Shooting System

LED Large Screen Display System

LED Large Screen Display System

Used to display virtual screens, with high grayscale, wide color gamut, and other display requirements
Genlock Synchronization System

Genlock Synchronization System

Provides Genlock synchronization signals for core peripherals such as LED control systems, rendering engines, and XR servers.
Rendering Engine

Rendering Engine

Used to produce digital assets (3D film sources) and output 2D film sources to LED large screens
XR Server

XR Server

Fusion output of rendered images (virtual) and camera images (real scenes), motion capture, tracking and other peripheral data analysis
LED Large Screen Control System

LED Large Screen Control System

Receive the virtual picture given by the rendering engine and accurately restore it and display it on the large LED screen.
Real-Time Dynamic Tracking System

Real-Time Dynamic Tracking System

The positioning target is bound to the camera, and the accurate position of the camera in the three-dimensional space is obtained in real time and fed back to the engine or server.

Problems & Needs

Problems & Needs

  • Shoot an analysis of common problems
  • Control system core requirements
The LED is a scanning image, and insufficient refresh causes the camera to shoot with diagonal, bright or dark lines. It becomes more noticeable when shooting low-gray images, which seriously affects the shooting effect.
THE AMAZING SLIDESHOW ADDON!

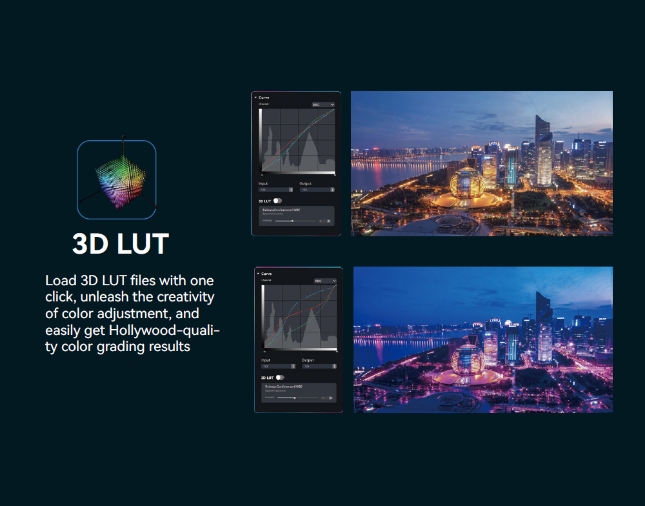

Input Source Color Management

The RGB components are adjusted independently for shadows and highlights, so that the video source looks and feels best on the corresponding display
THE AMAZING SLIDESHOW ADDON!

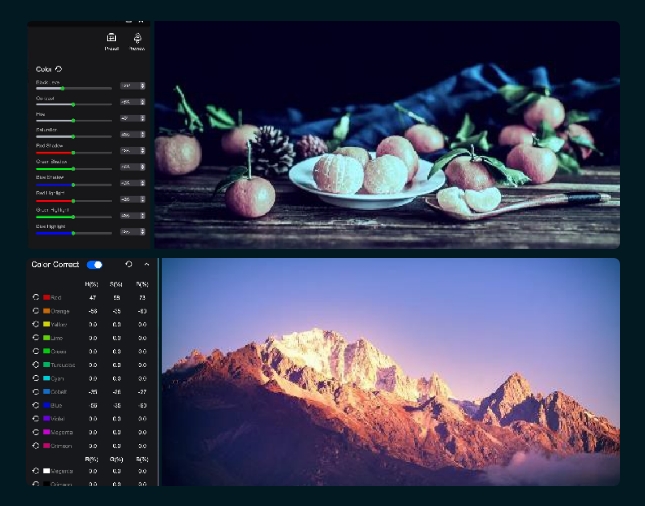

14-Way Color Adjustment

Based on 12 basic colors, plus 14 basic color adjustments in black and white, the color objects can be controlled separately for specific use scenarios, and the adjustment can be flexibly adjusted without damaging other color information
THE AMAZING SLIDESHOW ADDON!

Global Presets Can Be Retrieved With One Click

Users can store all input, preset, and output parameter information as preset templates, which can be retrieved by one-click of the field application
THE AMAZING SLIDESHOW ADDON!

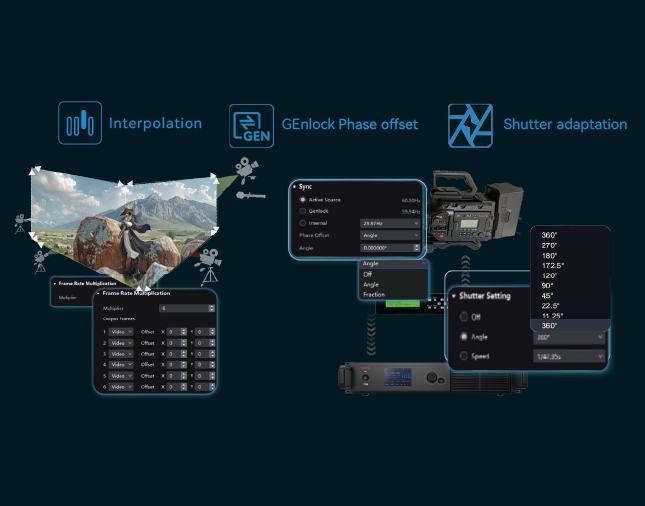

Frame Rate Processing Technology

Genlock offset, shutter adaptationfrequency doubling, frame interpo-lation

XR

Advantages Of Our Control System

  • Shoot without black burst and scan lines

  • 120Hz+ high frame rate and adaptive frame rate

  • Stable and efficient/easy to operate

  • HDR and display standardization

  • Low gray and delicate with accurate color

  • Absolute synchronization with very low latency

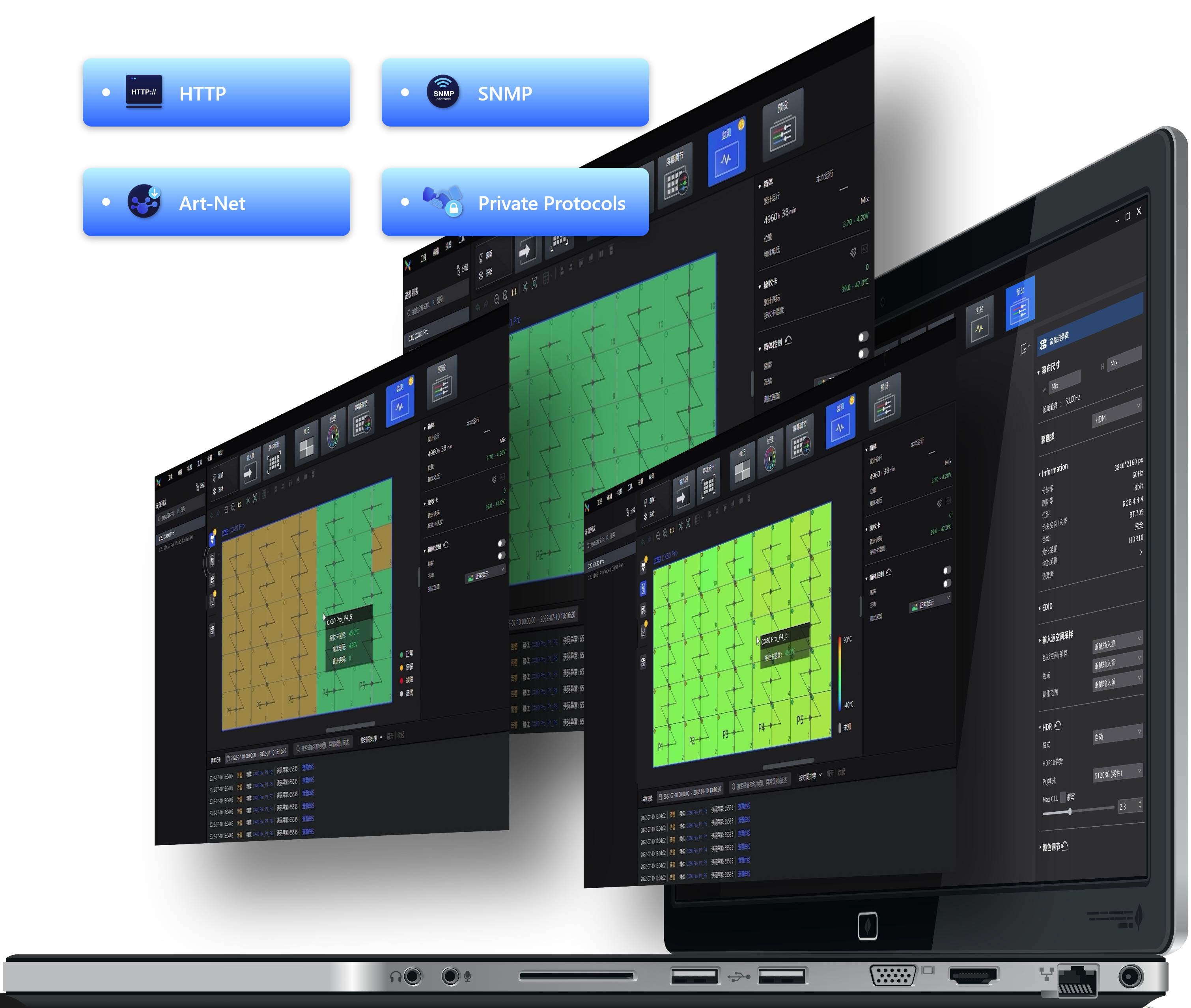

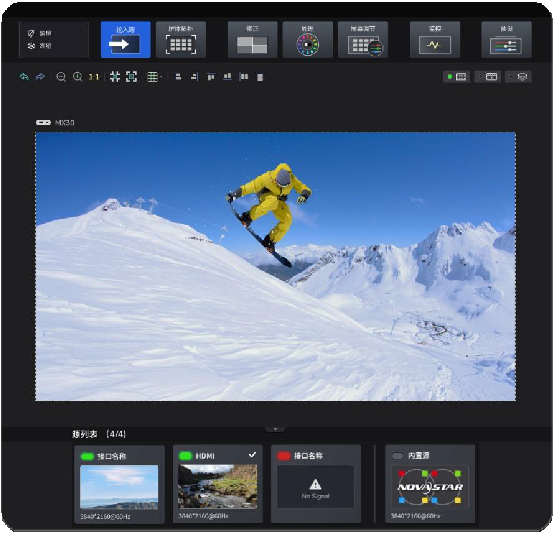

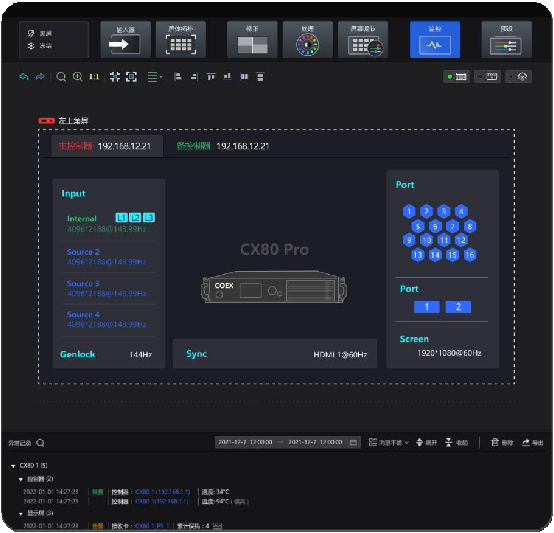

VMP Comprehensive And Visual Monitoring

Preview Of The Video Source
The Status Of The Controller
The Status Of The Display

Intelligent Early Warning

Communication Link Early Warning

Communication Link Early Warning

Voltage Warning

Voltage Warning

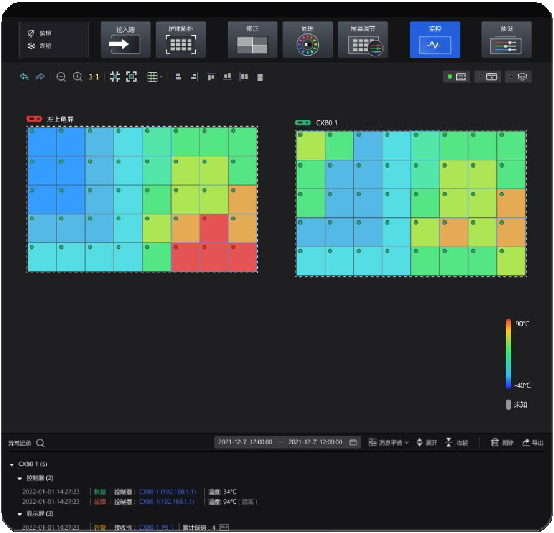

Temperature Warning

Temperature Warning

Controller Status

Controller Status

Log Export

Log Export


Application

Indoor Car Shooting Scene

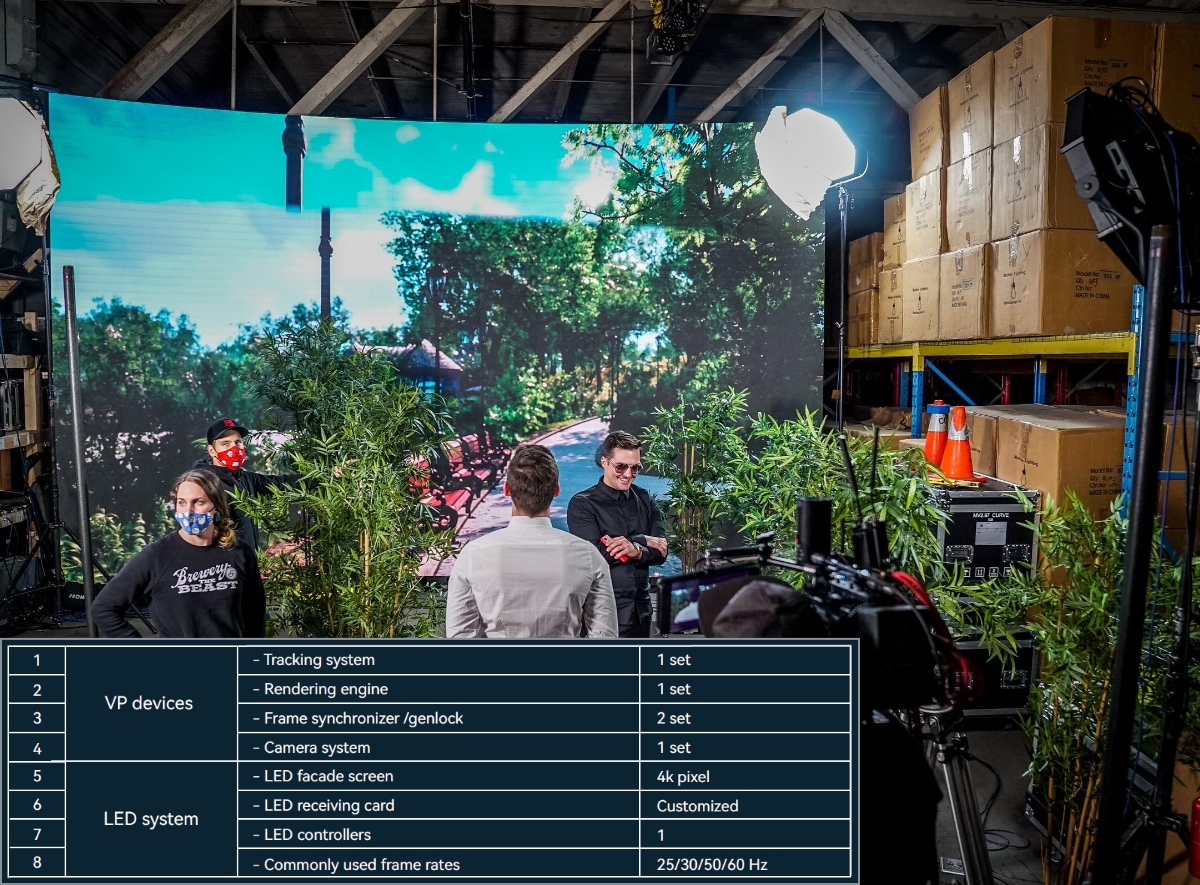

Indoor Giant Screen Shooting
Film And Television Shooting

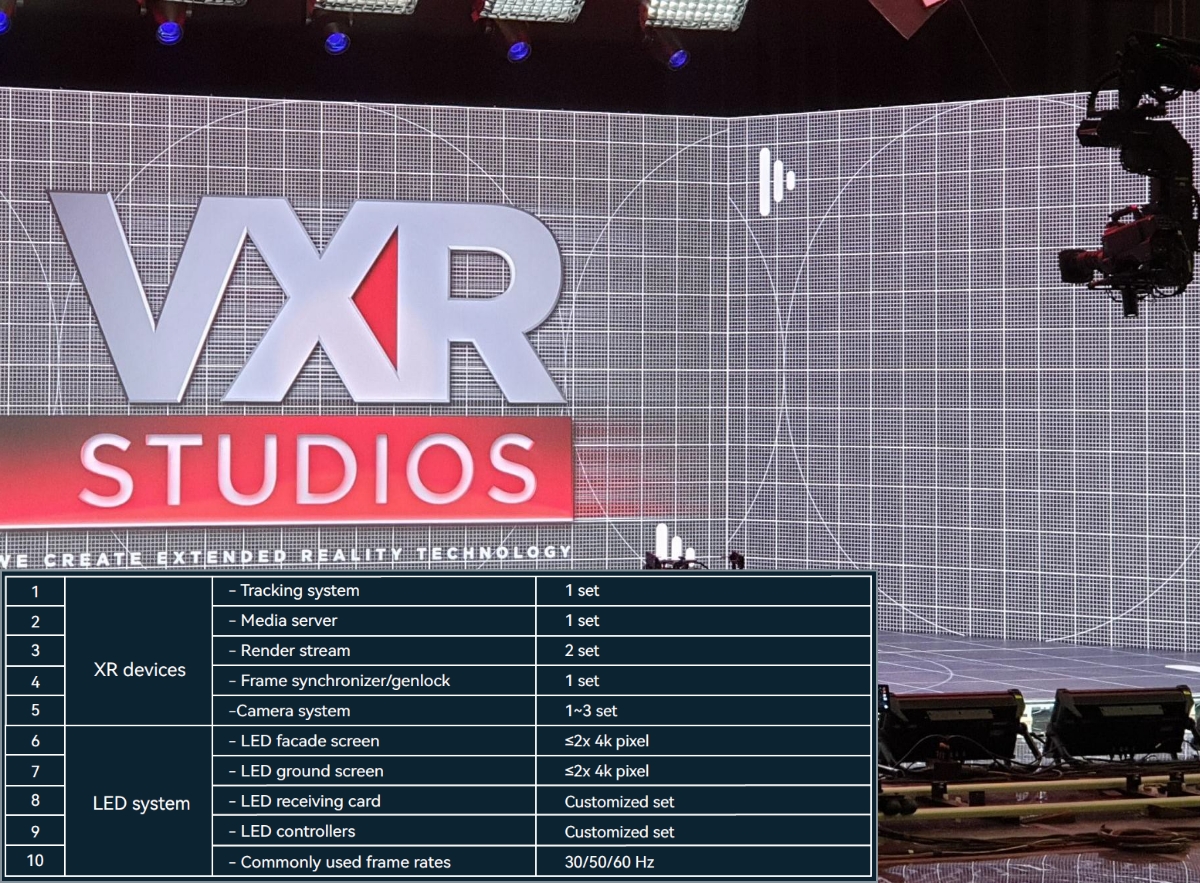

Indoor Studio Presentation
Indoor Photography Video
